Plugin vigilance

Purpose

The plugin allows you to display Weather Alert (Vigilance) from “Meteo France” This service is available online here (Service only available for France’s Departements):

http://vigilance.meteofrance.com/

_images/vigilance.meteofrance.png

The Weather Vigilance is designed to inform the population and the public authorities in case of dangerous meteorological phenomena in metropolitan France. It aims to draw the attention of all to the potential dangers of a meteorological situation and to communicate the precautions to protect themselves.

Four colors for four levels of alertness Each department is colored in green, yellow, orange or red, depending on the meteorological situation and the level of vigilance required. In case of wake-submersion vigilance, the littoral of the coastal departments concerned is also colored. If a noticeable change occurs, the card can be updated at any time.

In the case of a dangerous phenomenon of high intensity, the zone concerned appears in orange. In case of very dangerous phenomenon of exceptional intensity, the zone concerned appears this time in red.

Signification of each color:

  • Vert: Pas de vigilance particulière (Green: No particular vigilance)
  • Jaune: Soyez attentifs (Yellow: Be careful)
  • Orange: Soyez très vigilant (Orange: Be very vigilant)
  • Rouge: Une vigilance absolue s’impose (Red: Absolute vigilance is essential)

For color Yellow, Orange, Red there is 9 alert types:

  • Vent (Wind)
  • Pluie (Rain)
  • Orages (Thunderstorms)
  • Inondation (Flood)
  • Neige/verglas (Snow/ice)
  • Canicule (Heat wave)
  • Grand froid (Intense cold)
  • Avalanches (Avalanches)
  • Vague submersion (Submersion wave)

In the plugin, to be be identical to Meteo France Color, the foor color green, yellow, orange or red are recorded with this value:

  • grey: “E0E0D1”
  • green: “28D661”
  • yellow: “FFFF00”
  • orange: “FFC400”
  • red: “FF0000”

Dependencies

No dependencies needed

Plugin configuration

No configuration needed for the plugin

Create the devices

Device parameters configuration

One parameter is needed for a domogik device creation ...

Key Type Description
departement DT_String The french ‘Département’ number”

Some exceptions for this departements:

  • Use “75” for 75, 92, 93, 94 departement
  • Use “99” for Andorre
  • Use “2A” for “Corse du Sud”
  • Use “2B” for “Haute Corse”

The vigilance sensors are updated every 15mn

Start the plugin

You can now start the plugin (start button) and use the created devices.

Use vigilance information in scenario

With scenario, you can send alert when vigilance becomes orange or red.

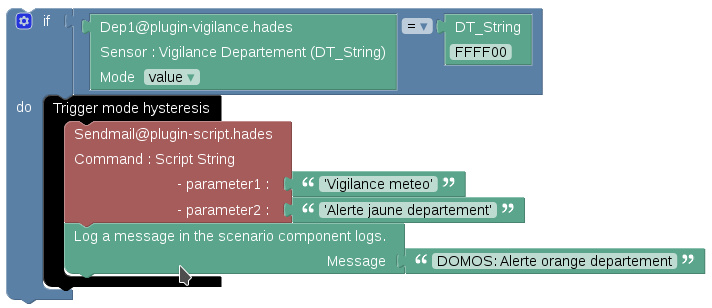

Here is a simple exemple of senario:

_images/Domogik_Vigilance_Scenario_1.png

Set up your widgets on the user interface

You can now place the widgets of your devices features on the user interface.

For Domoweb

There is a spécifique widget:

Here some snapshots of the widget in different case:

Widget appearance if not configured or without information for the departement configured:

_images/Domoweb_VigilanceWidget_NoInfo.png

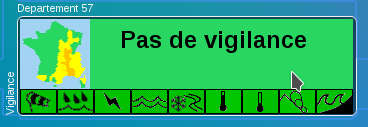

Widget appearance for no vigilance:

_images/Domoweb_VigilanceWidget_Vert.png

Widget appearance for yellow vigilance:

_images/Domoweb_VigilanceWidget_Jaune.png

Widget appearance for orange vigilance:

_images/Domoweb_VigilanceWidget_Orange.png

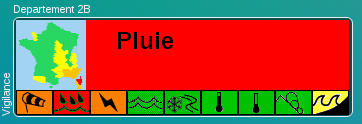

Widget appearance for red vigilance:

_images/Domoweb_VigilanceWidget_Rouge.png

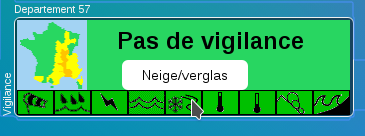

Some détail for the “risk” icon if you click/tap on it:

_images/Domoweb_VigilanceWidget_RiskTooltip.png

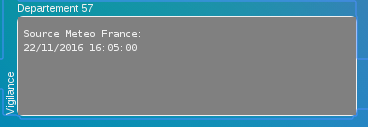

Additional information if you click/tap on “France” Logo

_images/Domoweb_VigilanceWidget_Info.png

For now, there is only the source “Meteo France” et the last update date.

A next update will have to add a given bulletin during the orange and red vigilances
